module demo::vis::StaticSite

rascal-0.40.17

Demonstrates HTML generation and viewing in Rascal.

Usage​

import demo::vis::StaticSite;

Dependencies​

import lang::html::IO;

Description​

In the current module we have a function table which transforms any binary relation into an HTML table:


module demo::vis::StaticSite

import lang::html::IO;


HTMLElement table(rel[&T, &U] r)
    = table([
        tr([
            td([text("<a>")]),
            td([text("<b>")])
        ])
    | <a, b> <- r
    ]);

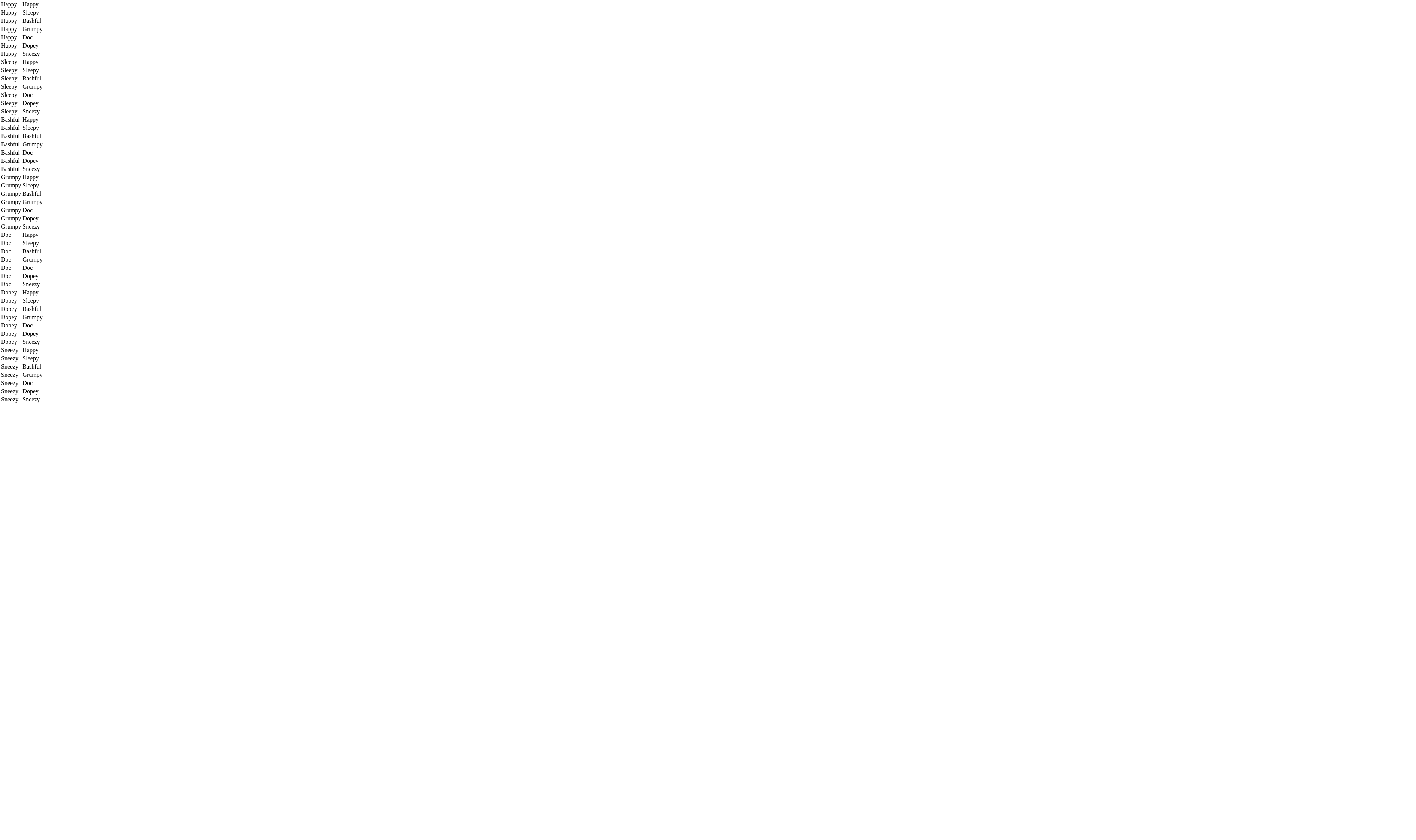

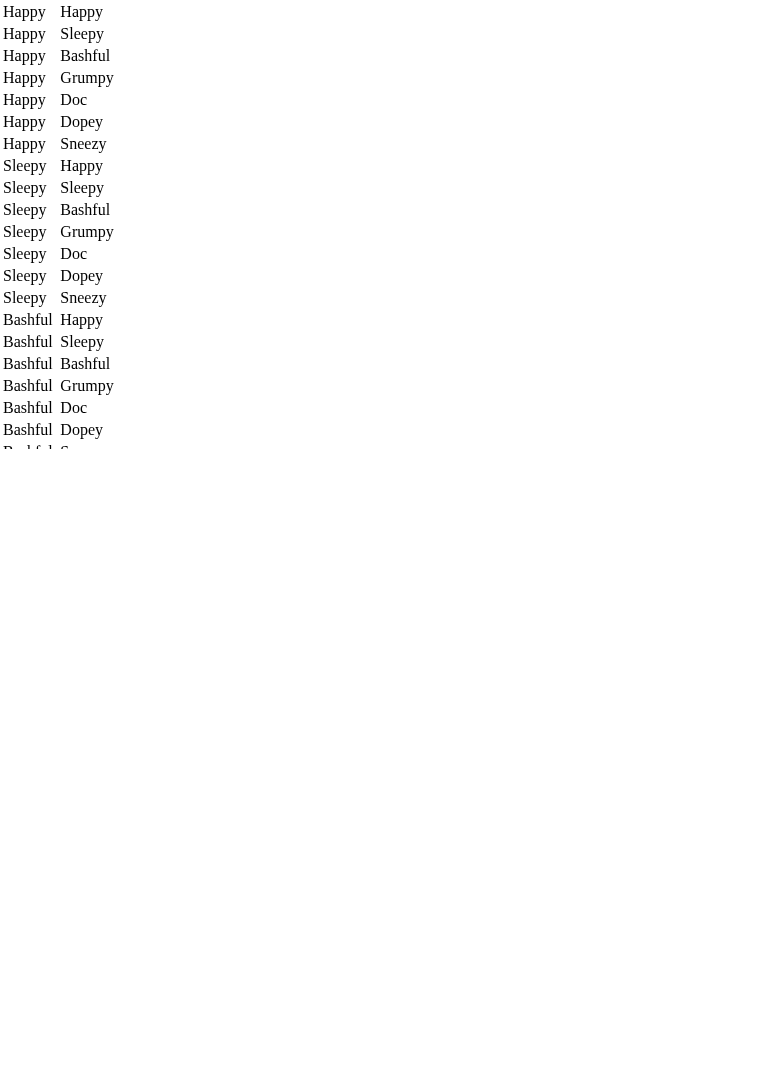

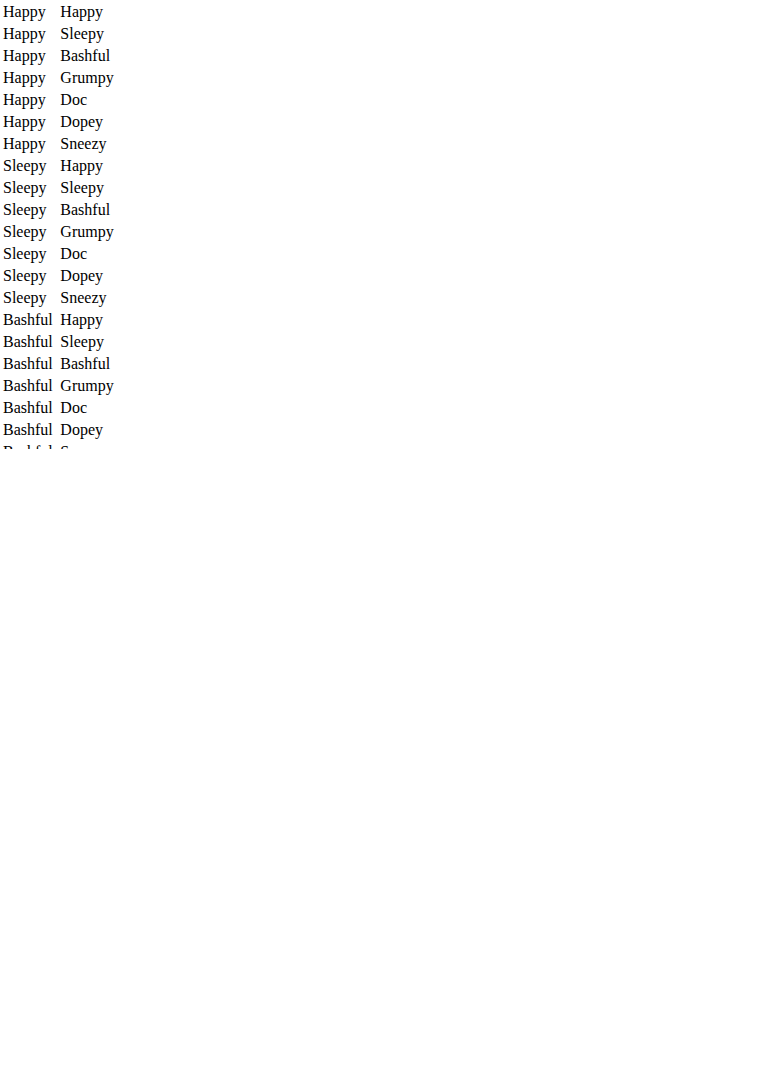

When we try this out on the commandline, the REPL will pop-up a browser window such that we can visualize the result:

rascal>import demo::vis::StaticSite;
ok
rascal>import lang::html::IO;
ok
rascal>characters = {"Sneezy", "Sleepy", "Dopey", "Doc", "Happy", "Bashful", "Grumpy"};
set[str]: {"Happy","Sleepy","Bashful","Grumpy","Doc","Dopey","Sneezy"}
rascal>serve(table(characters * characters));



To get this effect we used the following library modules:

  • AST contains the HTML abstract syntax tree definition
  • IO knows how to pretty-print HTML
  • Content provides access to the builtin application server of the Rascal REPL

function table​

Translates a binary relation to an HTML table element.


HTMLElement table(rel[&T, &U] r)
    = table([
        tr([
            td([text("<a>")]),
            td([text("<b>")])
        ])
    | <a, b> <- r
    ]);
